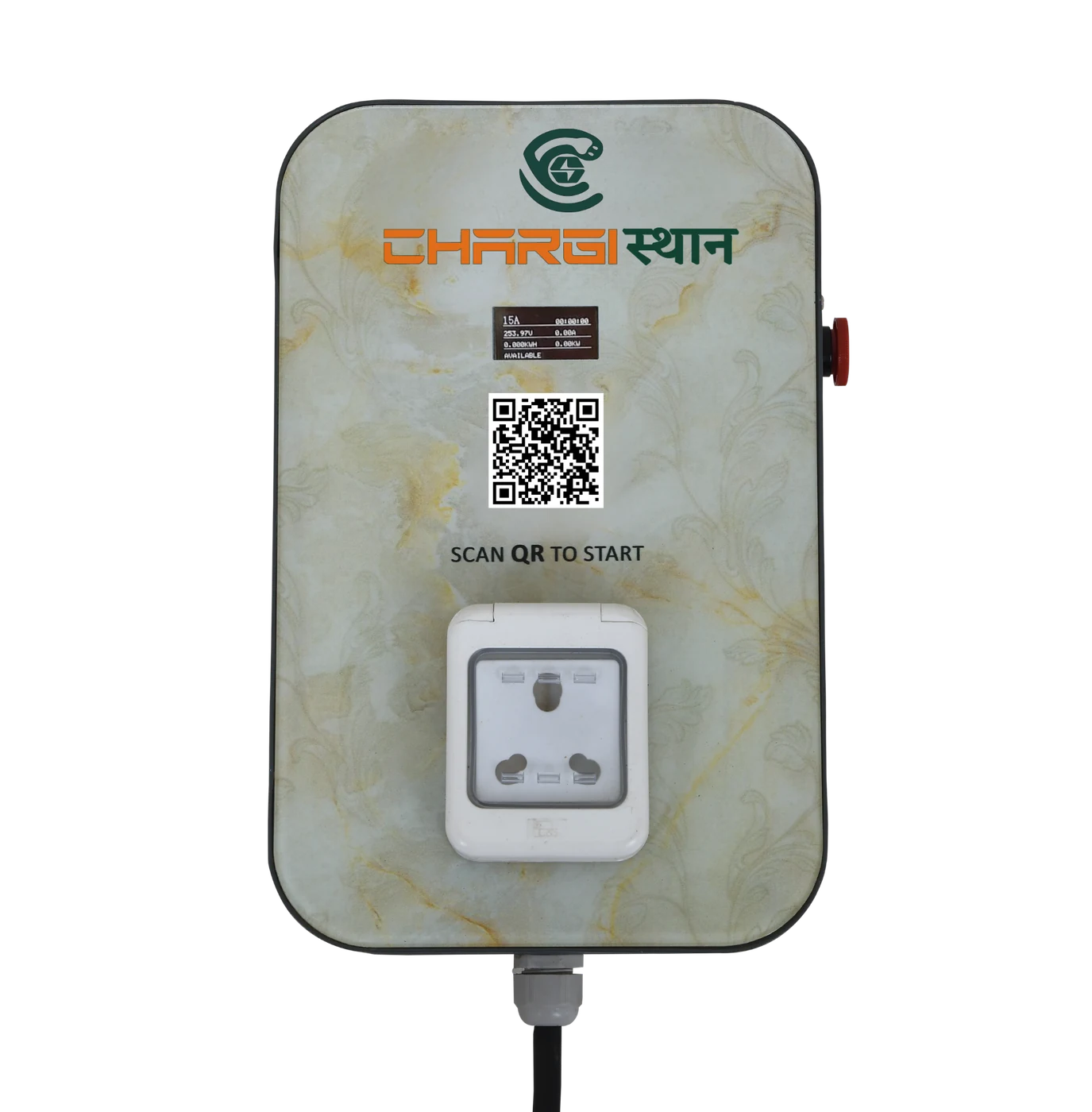

3.3 kW Smart Charging Socket

Name: 3.3 kW Smart Charging Socket
Brand: Chargisthan

Smart, metered AC charging socket for homes, societies, and public parking — started with a QR scan.

Chargisthan's 3.3 kW Smart Charging Socket is a compact, metered AC charging point built for homes, housing societies, and public parking. Drivers simply scan the on-unit QR code to begin a session — making it ideal for electric 2-wheelers, 3-wheelers, and slow charging of 4-wheelers.

Running on OCPP 1.6, it connects to the cloud over 4G for remote monitoring, session control, and app-based payments, while a built-in energy meter shows live voltage, current, power, and kWh. A rugged IP54 enclosure, emergency-stop button, and comprehensive electrical protections keep it safe and dependable, indoors or out.

3.3 kW single-phase16A universal socketQR-code startOCPP 1.6 · app paymentsLive metering · IP54

Request a Quote WhatsApp Enquiry

Features

📱

QR-code start

Drivers scan the on-unit QR code to start and stop charging — no card or key required.

💳

App payments

Cloud wallet and app-based billing for every session — ready for paid public charging.

☁️

OCPP managed

OCPP 1.6 over 4G for remote monitoring, control, and session reporting.

📊

Built-in metering

On-unit display shows live voltage, current, power, and kWh consumed.

🛡️

Full protection

Over-voltage, under-voltage, over-current, short-circuit, reverse-connection, and earth-fault protection.

🔌

Universal socket

16A single-phase universal socket for 2W, 3W, and slow 4W AC charging.

🧱

Rugged & weatherproof

IP54 enclosure with an emergency-stop button for safe indoor or outdoor use.

⚡

Plug and play

Simple wall or stand mounting with quick, low-effort installation.

Parameters

	Specification	IN-AC 3.3
Electrical Properties
	Rated Power	3.3 kW
	Input Supply	Single Phase AC
	Input Voltage	230V ±15%
	Output Voltage	230V ±15%
	Frequency	50 Hz
	Rated Current	16A
	Wiring Configuration	3-wire (Line, Neutral, Earth)
	Energy Efficiency	> 95%
Design & Interface
	Socket / Connector	16A universal 3-pin socket
	Charging Mode	AC Mode 2 / Mode 3
	Display	LCD status display (voltage, current, power, kWh)
	Energy Meter	Built-in (kWh)
	User Authentication	QR code / mobile app
	Payment System	App wallet integration
	Emergency Stop Button	Yes (push button)
	Communication Protocol	OCPP 1.6 or higher
	Network Gateway	2G / 3G / 4G
	Warranty	1 Year
Safety Protection
	Protections	Over-voltage, Under-voltage, Over-current, Short-circuit, Reverse-connection, Earth-fault
Environmental Performance
	Protection Level	IP54
	Operating Temperature	-20 ℃ ~ +55 ℃
	Installation Method	Wall-mount / Stand-mount
	Application Site	Indoor / Outdoor
Packing Details
	Product Dimensions	180 × 280 × 95 mm

Specifications are indicative and may be refined per project. Full compliance documentation available on request.
